1. Introduction
This guide offers a comprehensive overview of how to use 3DtoMe for Zakeke, a desktop application that seamlessly combines intuitive design with professional-grade capabilities. It streamlines the process of converting photogrammetry-based 3D models into a format compatible with Zakeke’s 3D and AR visualization platform.
You’ll learn how to prepare and optimize your dataset, upload it to 3DtoMe for Zakeke, apply advanced settings for model creation, and synchronize your digital twin with the Zakeke DAM Asset Library.
2. Requirements
Before getting started, ensure you have the following:
-
A Mac running the latest version of macOS for optimal performance and compatibility
-
A set of high-quality photographs of the object you want to turn into a 3D model
-
An active Zakeke account to enable direct upload to the Digital Asset Manager
-
A stable internet connection to support uploading and syncing assets with your Zakeke workspace
3. First Access & Zakeke Authentication
When opening 3DToMe for Zakeke for the first time, you will need the Client ID and Client Secret associated with your Zakeke account.
This step allows the app to connect with your Zakeke workspace and enables direct upload to the Digital Asset Manager (DAM).
3.1 How to retrieve Client ID and Client Secret:
-
Log into your Zakeke Account

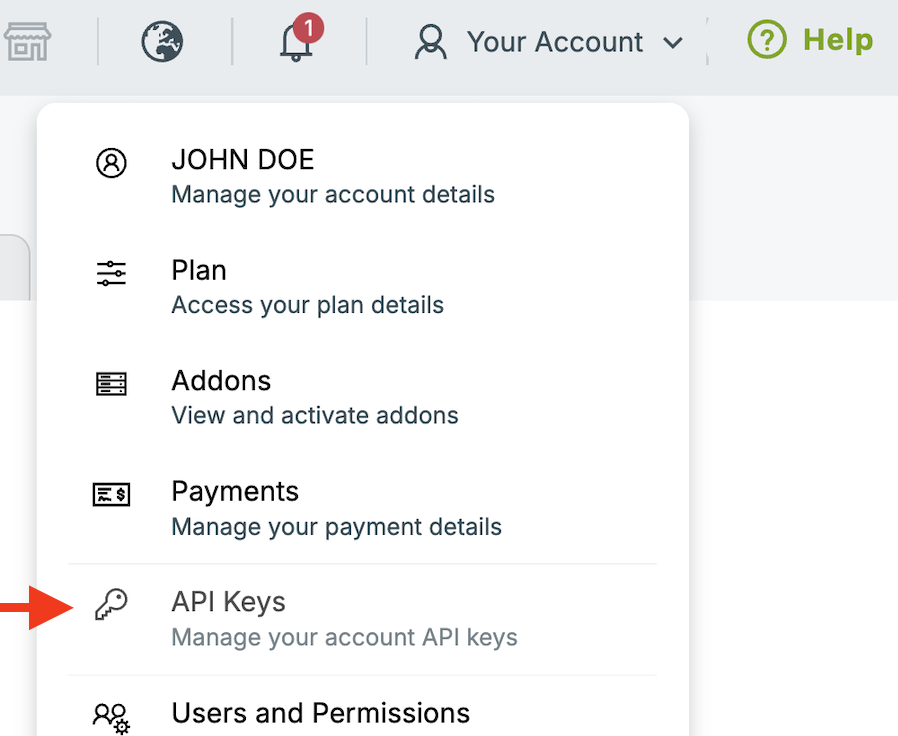

- Navigate to Your Account > API Access
-
-
-
Copy the Client ID and Secret Key displayed on the page

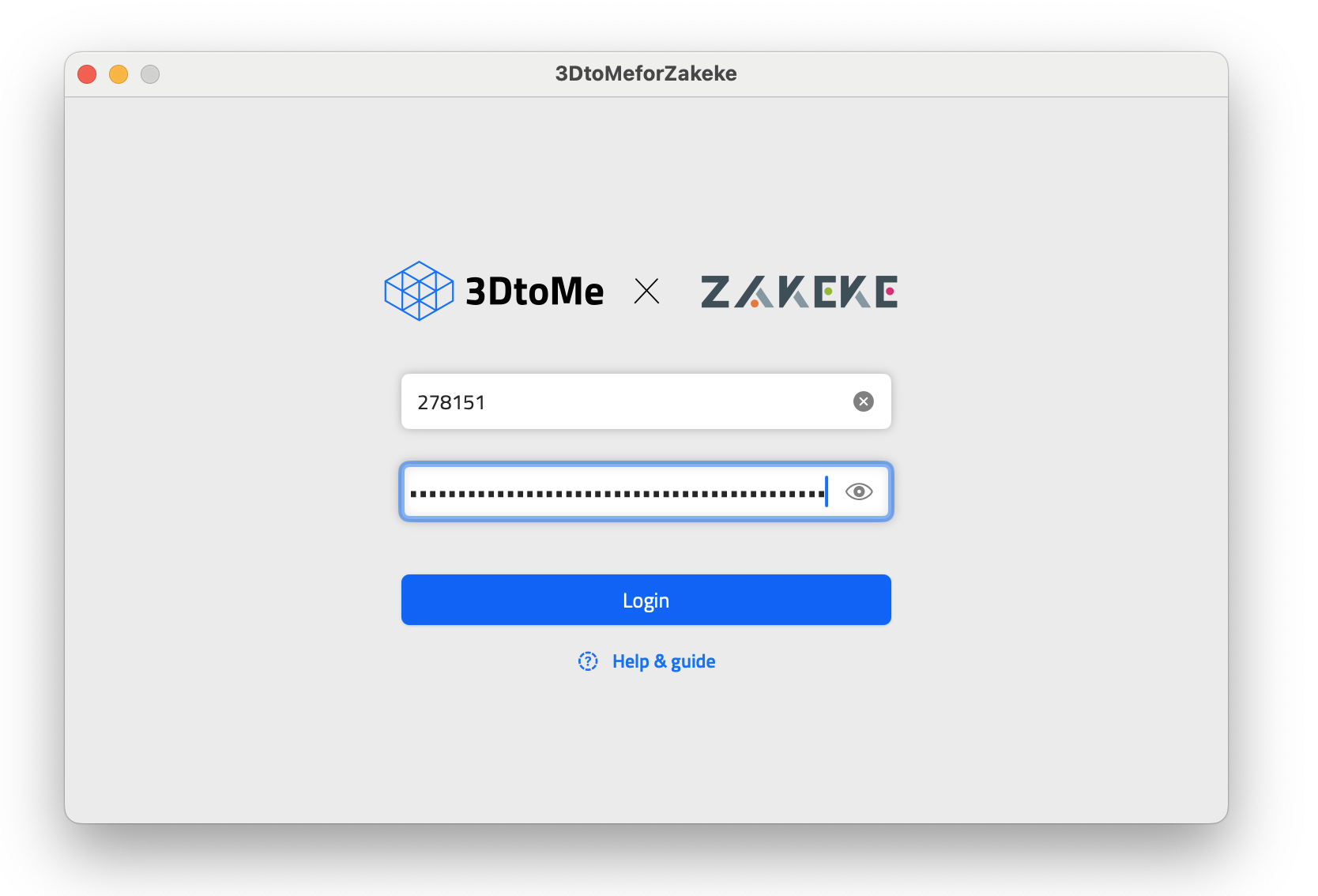

- Paste these credentials into the app and click on Login.
4. Take Your Photos
To create an accurate and detailed 3D model, you’ll need a series of photographs of your object taken from multiple angles. The quality of these images has a direct impact on the final result.
We’ve created a dedicated guide with all the best practices for capturing photos suitable for photogrammetry:
Best Practices for Photogrammetry Image Capture
Note
We highly recommend reviewing this guide before starting your project to ensure the best possible results.
5. Create a 3D Model
Once you’ve collected your photos, launch 3DToMe for Zakeke and begin creating your model:
Open the application on your Mac.

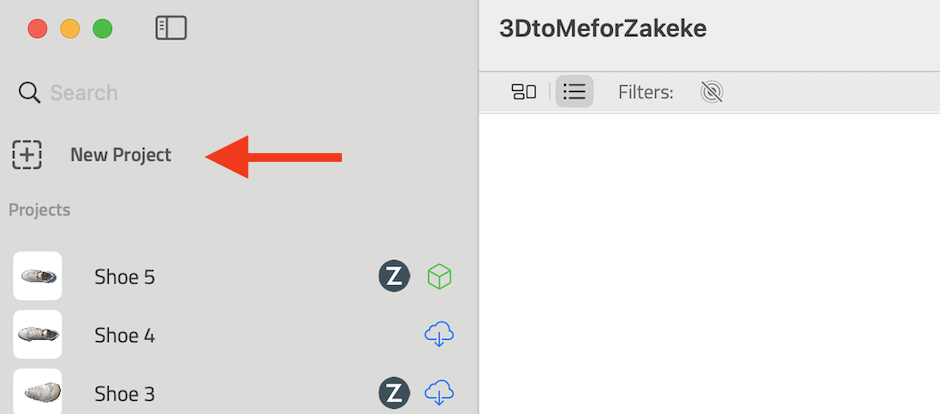

Select New Project

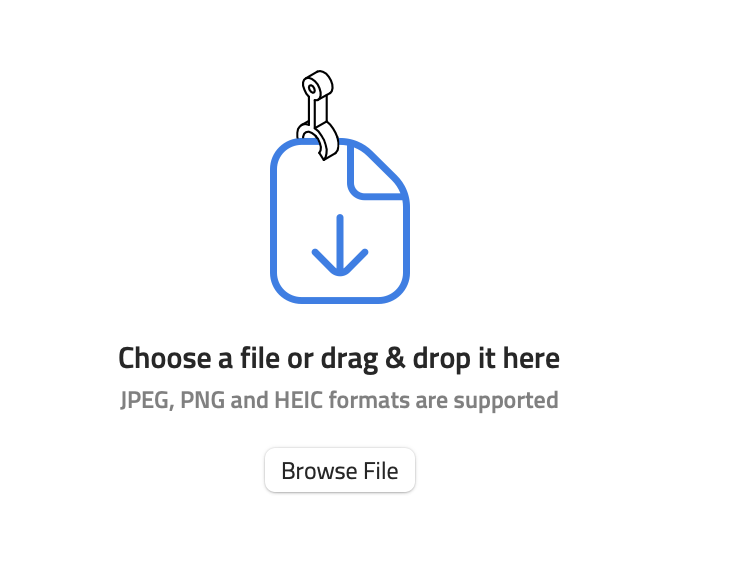

Import the photographs you've taken by drag & drop or browse files.
Important
The order of your photos matters. Make sure to start with images where the object is in its upright (standing) position. Additional images with the object turned on its side or upside down, must be placed after the upright shots in the sequence.

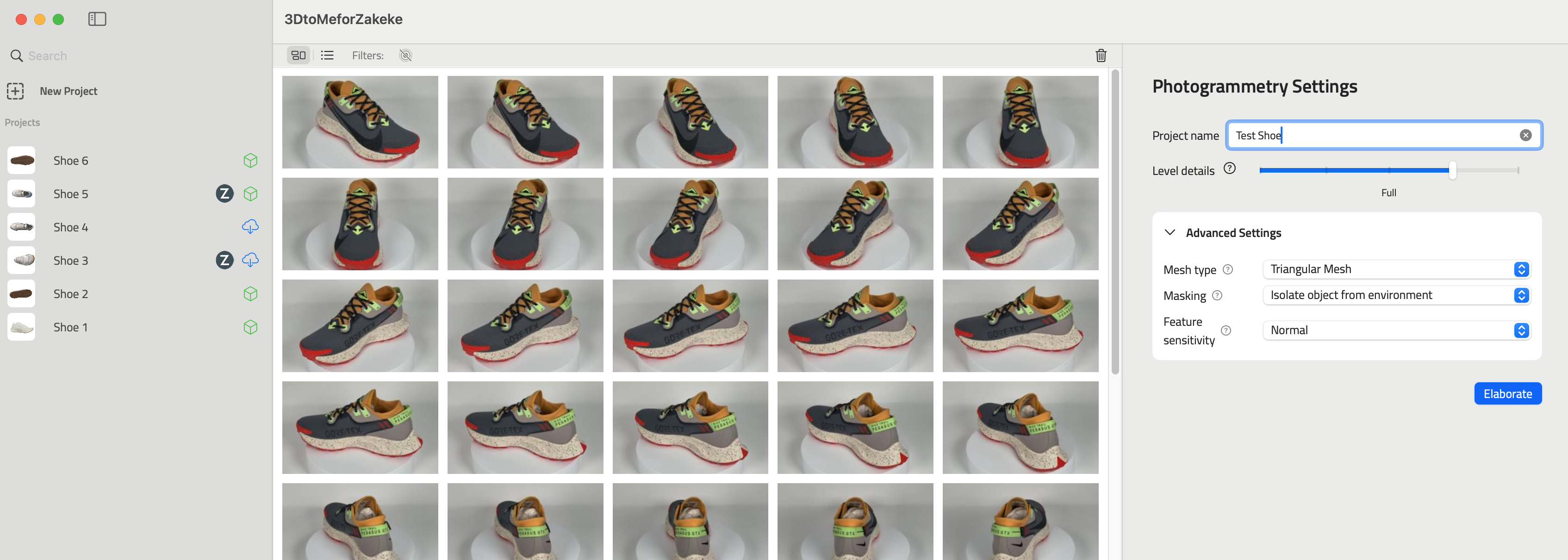

Input the Project Name and choose the Level details for the model generation
3DToMe for Zakeke can generate 3D models at different level of detail, each corresponding to a specific size and complexity. Higher detail levels require more time, memory, and processing power to complete.
Use the following settings to generate your 3D model:

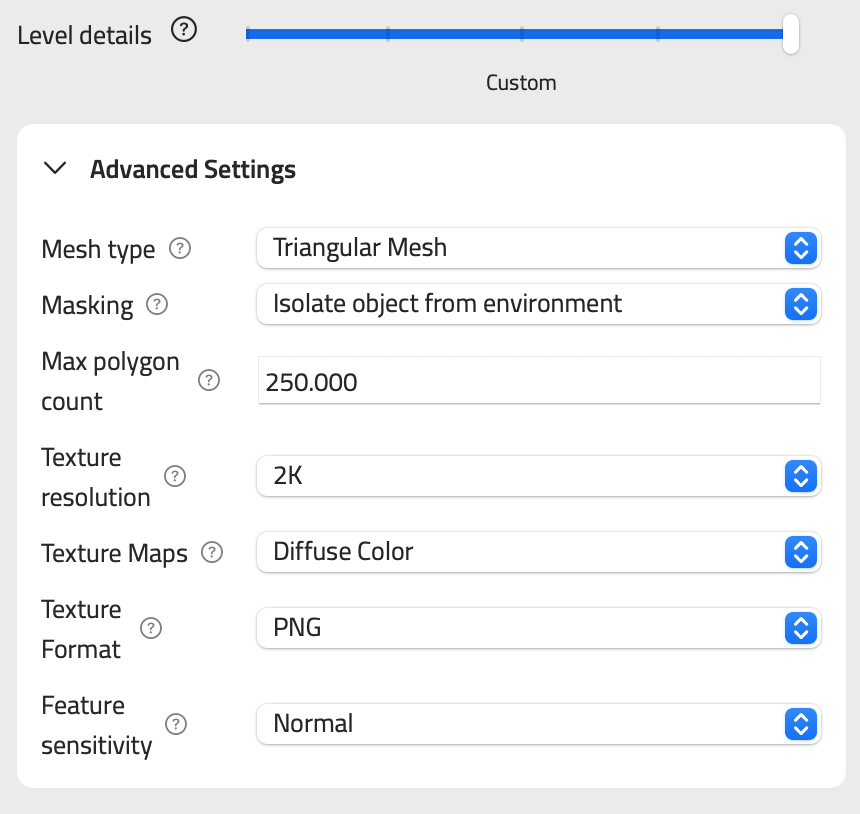

5.1 Advanced Settings
Before generating the model, you can select the following settings:
-
Mesh Type:
-
Triangular Mesh: Default option, optimized for rendering performance in web-based applications and real-time 3D configurators.
-
Quad Mesh: Preferred for editing, sculpting, or animation workflows in external 3D software
-
- Masking: Choose to remove from the processed 3D model the surrounding environment or keep it.
- Feature sensitivity: Use the Normal option when the object you want to process has rich textures (e.g., rough or detailed surfaces), otherwise use the High option for less detailed, monochromatic surfaces.
Once your preferences are set, click Elaborate to begin the model creation process. This may take a few minutes depending on photo quality, quantity, and selected settings.
Note
If you're not satisfied with the result, you can always go back, adjust the settings and click Regenerate to try again until you achieve the desired quality.
Note

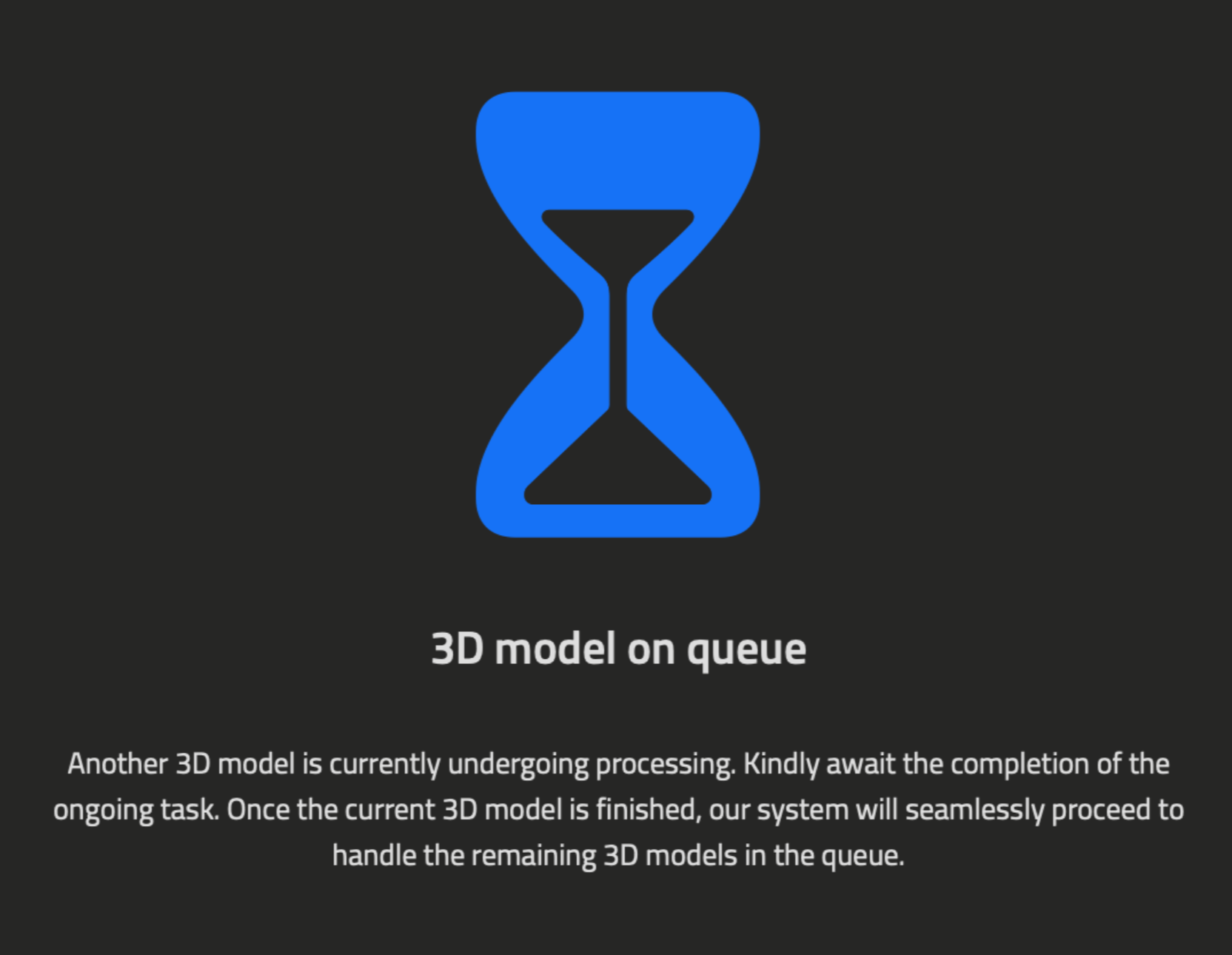

3DToMe for Zakeke allows you to queue multiple projects for processing. This feature enables you to initiate several model generations sequentially without waiting for each to complete before starting the next.
5.2 Transformations
In some cases, especially when using photos that do not contain depth data (such as those taken without a LiDAR-equipped camera), the generated 3D model may not match the real object's dimensions precisely.

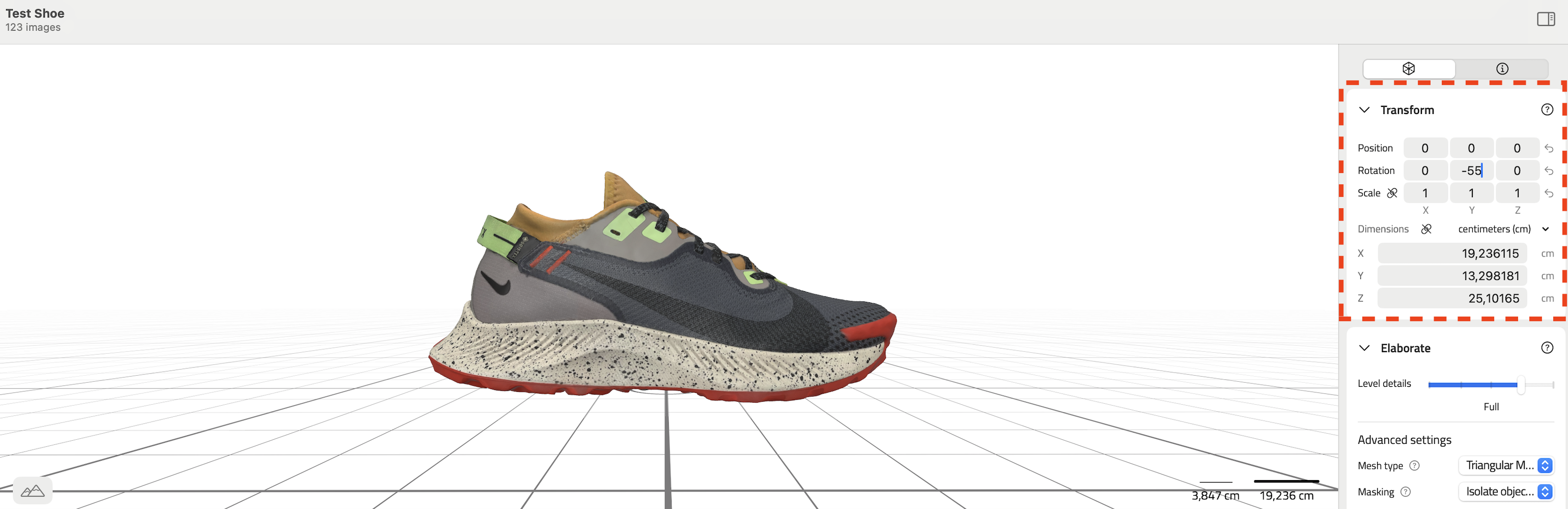

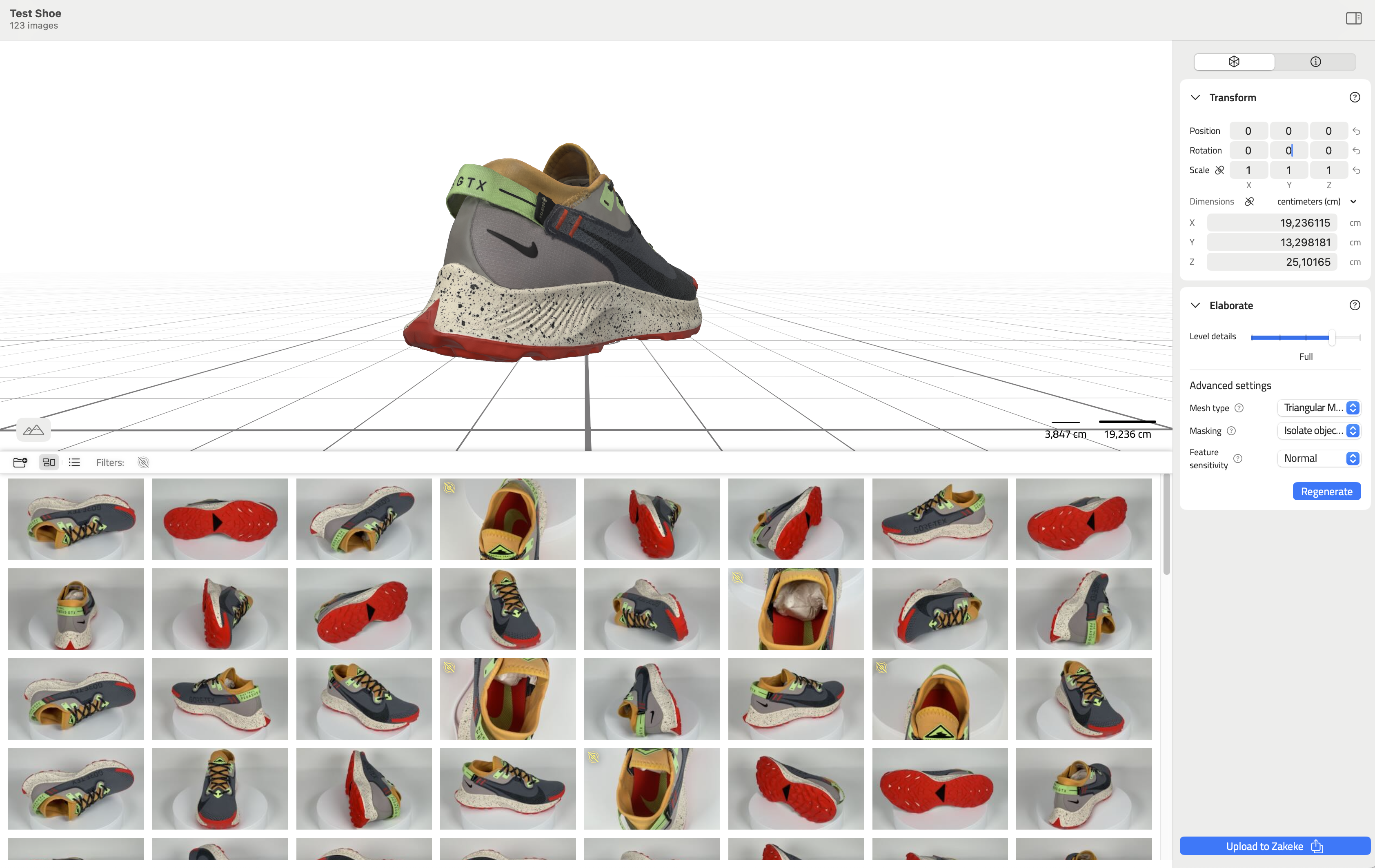

After generating the model, you can use the Transform panel to manually adjust the:
-
Position: Move the model within the scene if needed
-
Rotation: Correct the orientation of the model
-
Scale/Dimensions: Resize the model to better reflect real-world dimensions
Important
These adjustments must be made before uploading the model to Zakeke DAM. If you modify the model after uploading, you'll need to re-sync it with your Zakeke account, which incur additional costs.
6. Upload to Zakeke DAM
After the model has been successfully generated, you can upload it directly to your Zakeke Digital Asset Manager.

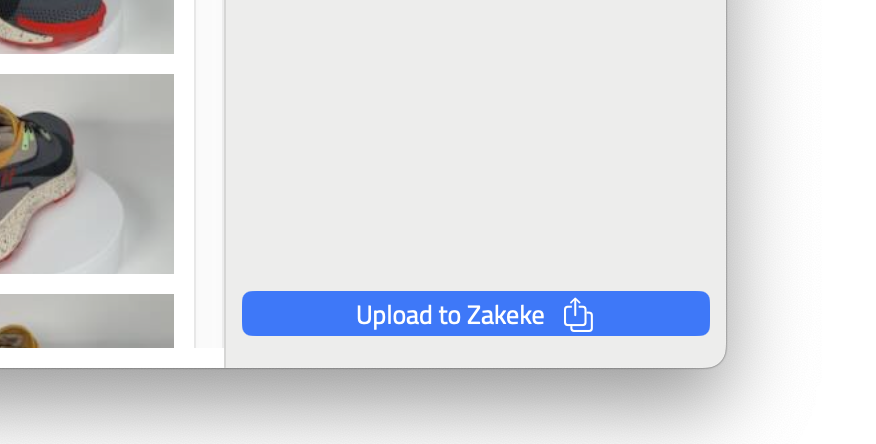

Click on the Upload to Zakeke button in the project view.
Important
Each upload to the Zakeke will result in a processing fee charged to your account. Make sure your model is finalized and optimized before uploading to avoid unnecessary costs.

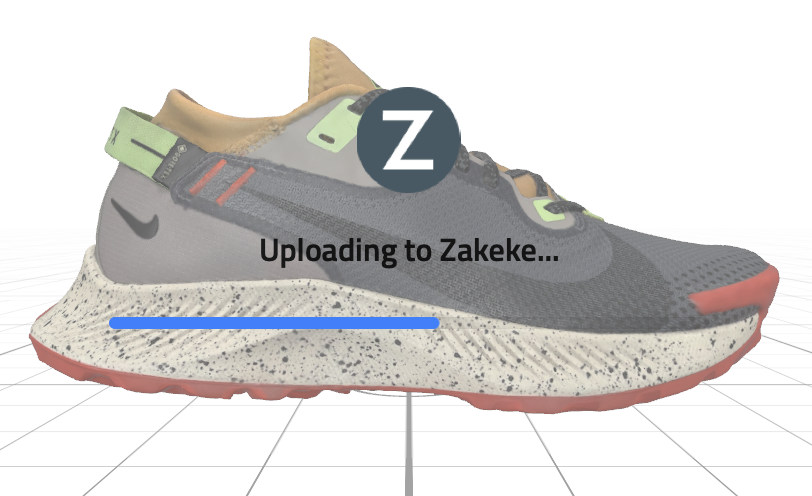

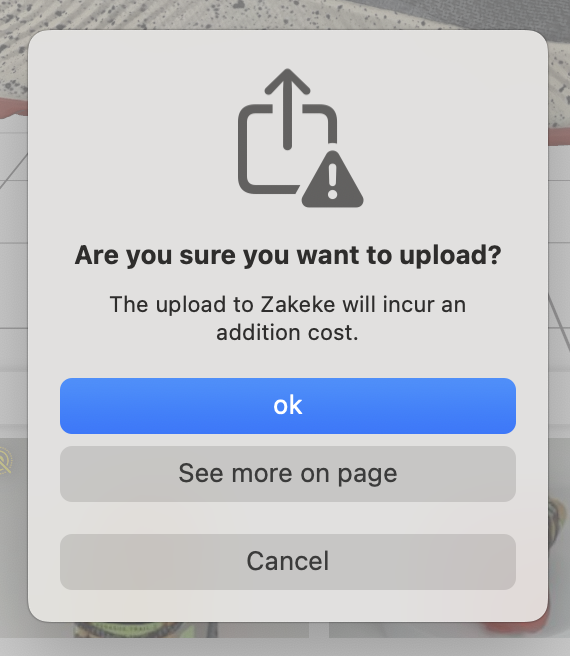

Confirm the upload. A progress indicator will show the status.

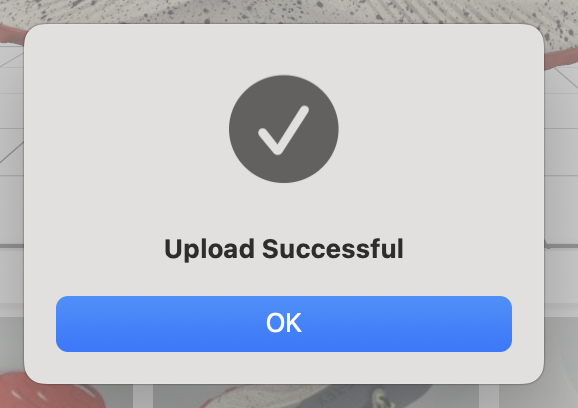

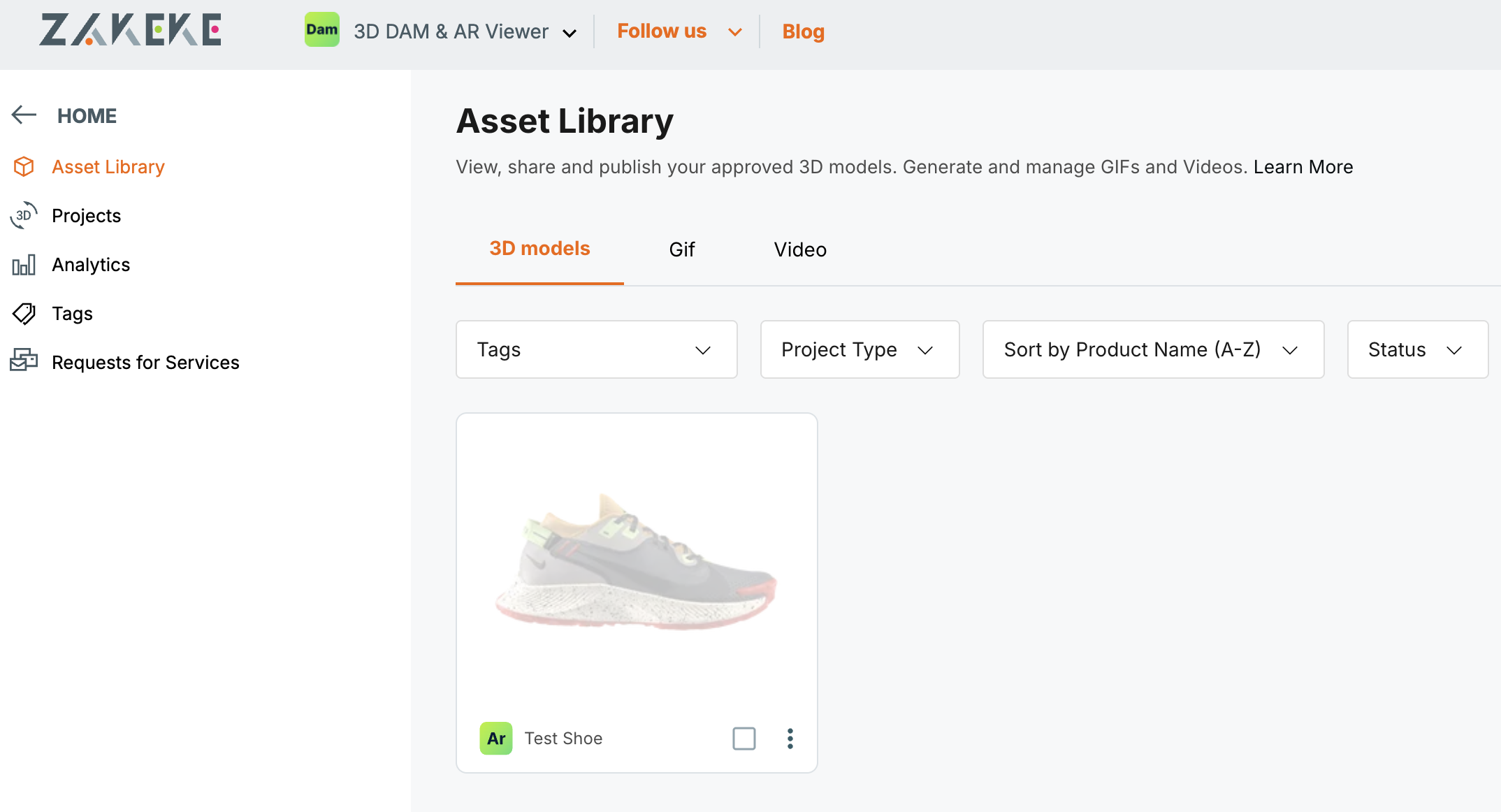

Once uploaded, the model becomes accessible within your Zakeke DAM account, in the Asset Library section.
Note
The model will be uploaded in Unpublished status. Learn how to publish your model in this guide
3DToMe For Zakeke Download
Interested in downloading 3DToMe for Zakeke? This tool is currently available upon request. Please contact us at support@zakeke.com to receive access and installation instructions.
